Aluminum Radiator for 1955-1959 Chevy GMC Truck 3B 3C 3D 3E 3F 100 150 3400 3600 3800 V8 L6 Apache Pickup Truck AT/MT Radiators 4 Row Core Downflow Radiador Shroud 16" Fan Relay Radiadors

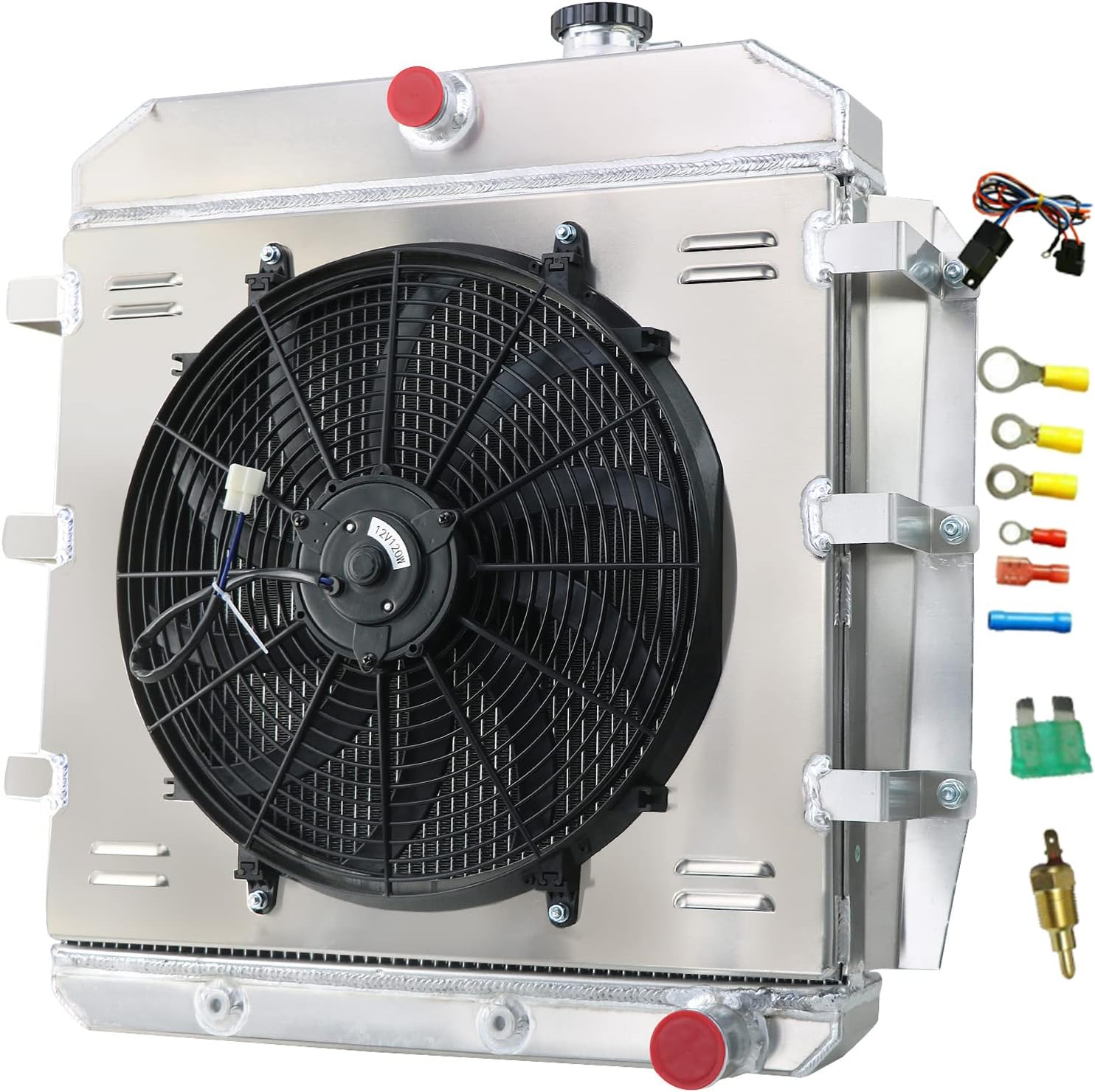

1959 For GMC 100 1955-1959 For GMC 150 1955-1959 This Listing Is Including: 1 X 4-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 16" Fans (Includes mounting kits) 1 X Thermostat Relay Kit FAN SPEC: Maximum Fan CFM: 2000±200 Fan Diameter (in): 16.050 inches Thickness (in): 2.790 inches Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Radiator Details: radiador de aluminio Material: All Aluminum ; Aircraft 5057 grade aluminum Fitment Type: Direct Replacement Crafts: 100% Tig welded Delivery: Local Delivery Placement on Vehicle: Engine Compartment Auto trans cooler: yes Style: Downflow Radiator Mounting Style: Screw-On Part Number: 5559,CC5559,CU5559,RAD5559,DPI5559 Relay Kit Instructions: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Thermostat Relay Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. Probe typically threads into radiator, water outlet or manifold.

• Core Size: 19.37" H x 21.58" W x 2.44" T ; Overall Size : 26.18" H x 26.97" W x 7.09" T
• Inlet/Outlet : 1.5"/1.77" ; Auto trans cooler: φ26*205*G1/4（Z)
• Includes CNC machined filler neck and cap,Full aviation-aluminum craftsmanship, 100% welded by TIG
• Easy To Install: Light weight direct bolt-on replacement, stronger & higher capacity for coolant
• 12 Months warranty ; If you have any questions, please feel free to contact us, we will solve it for you
